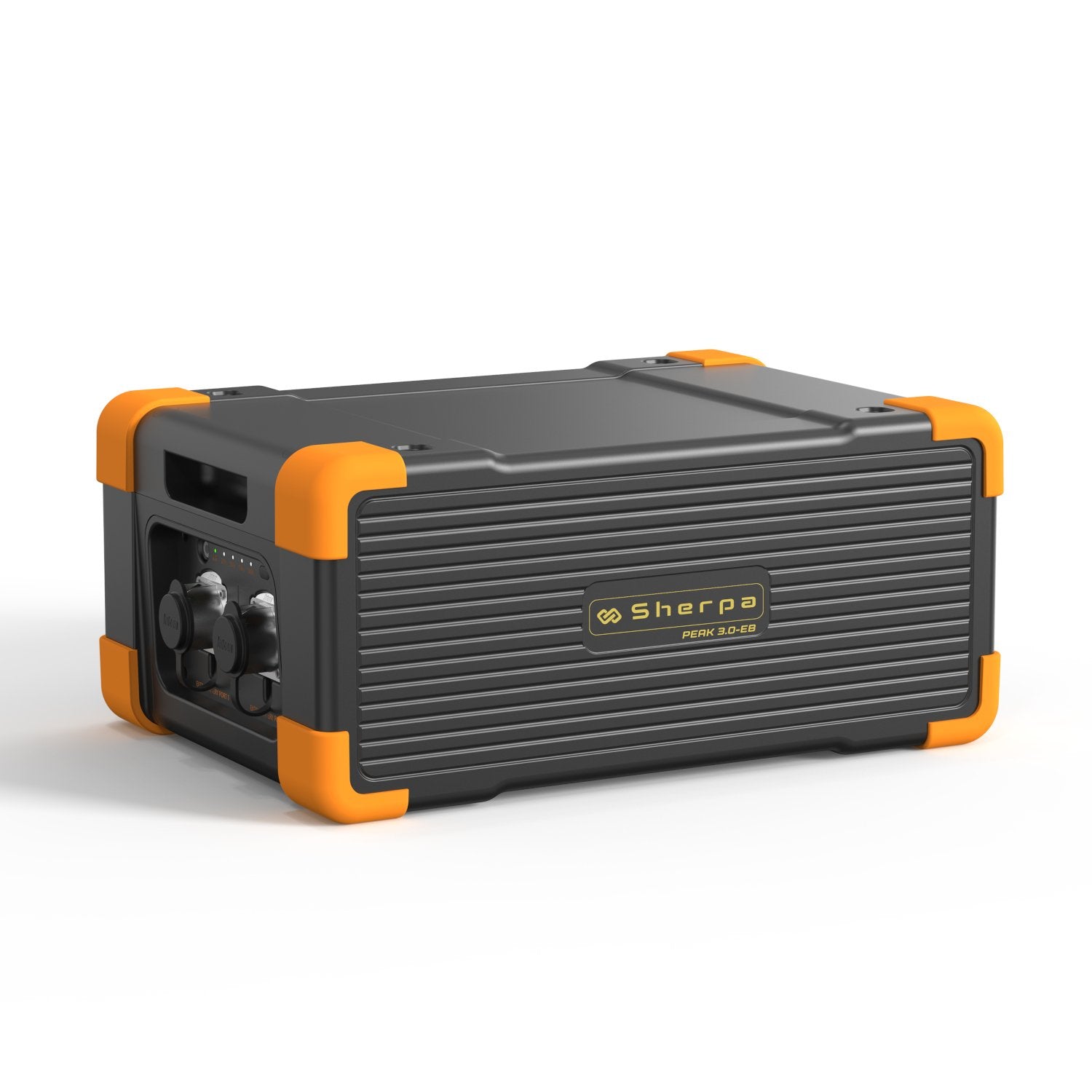

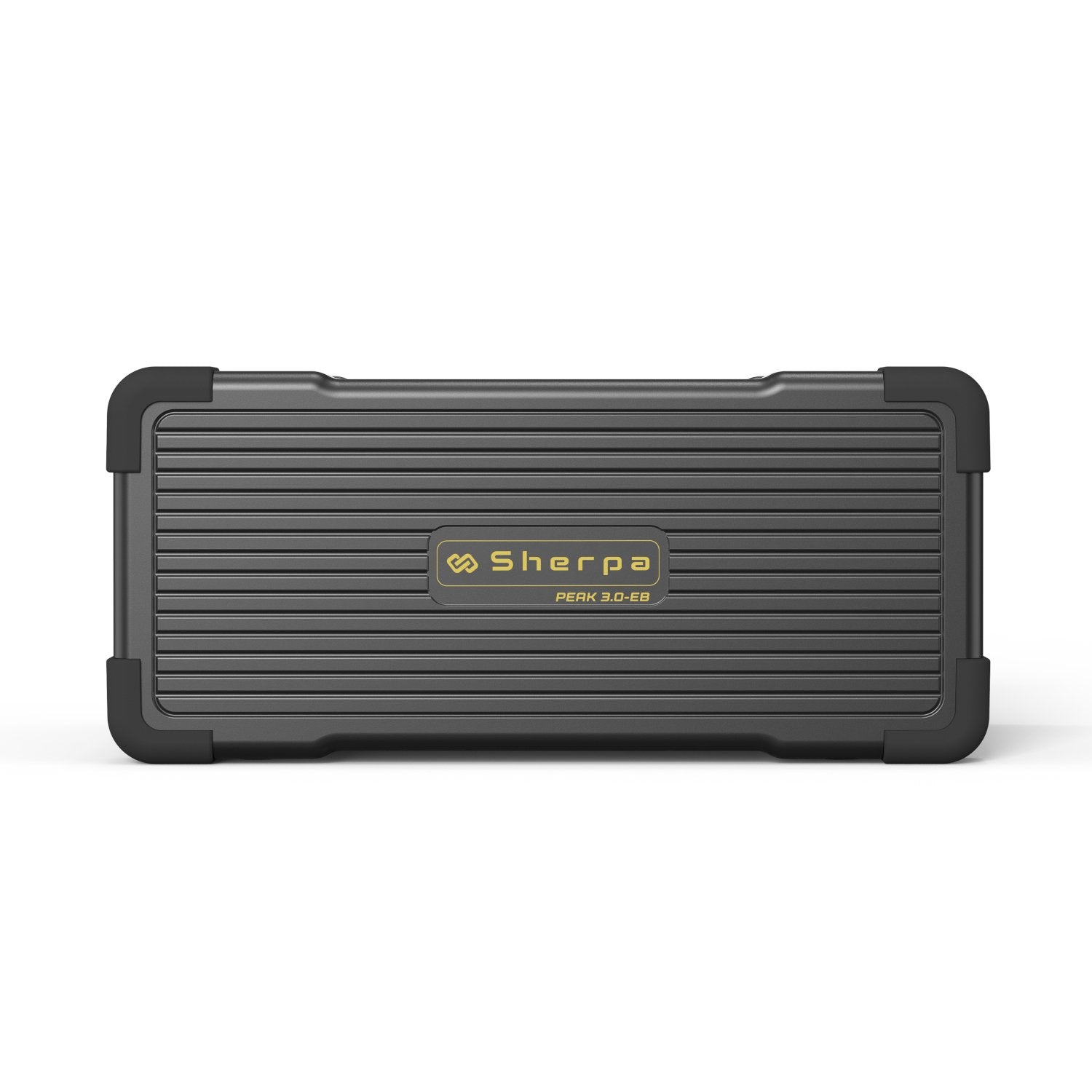

Front-right view of solar smart battery pack, featuring capacity expansion ports, carry handles and LED charge indicator

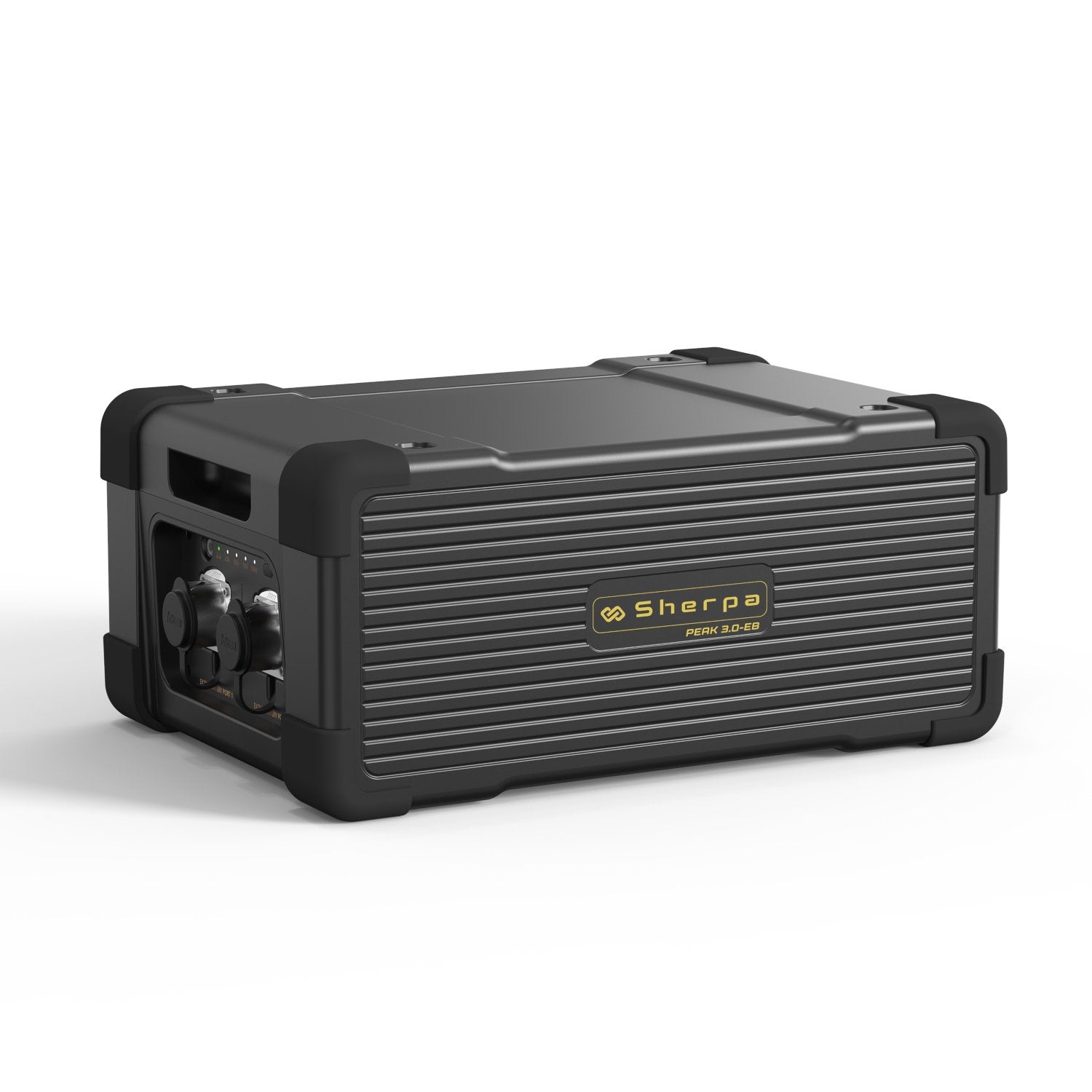

Front-left view of extra smart battery module, featuring USB and XT60 ports, solar charge port and lifting handles

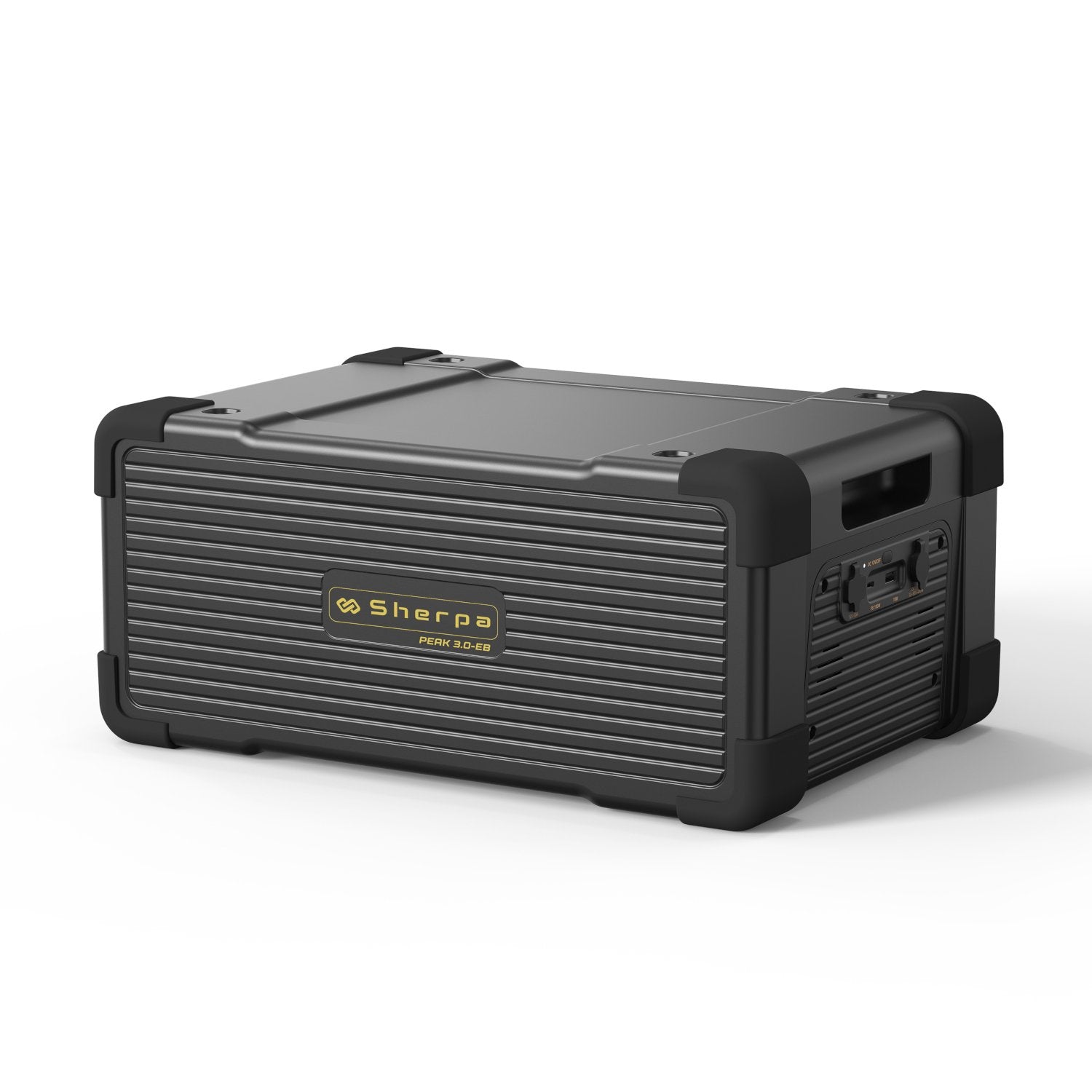

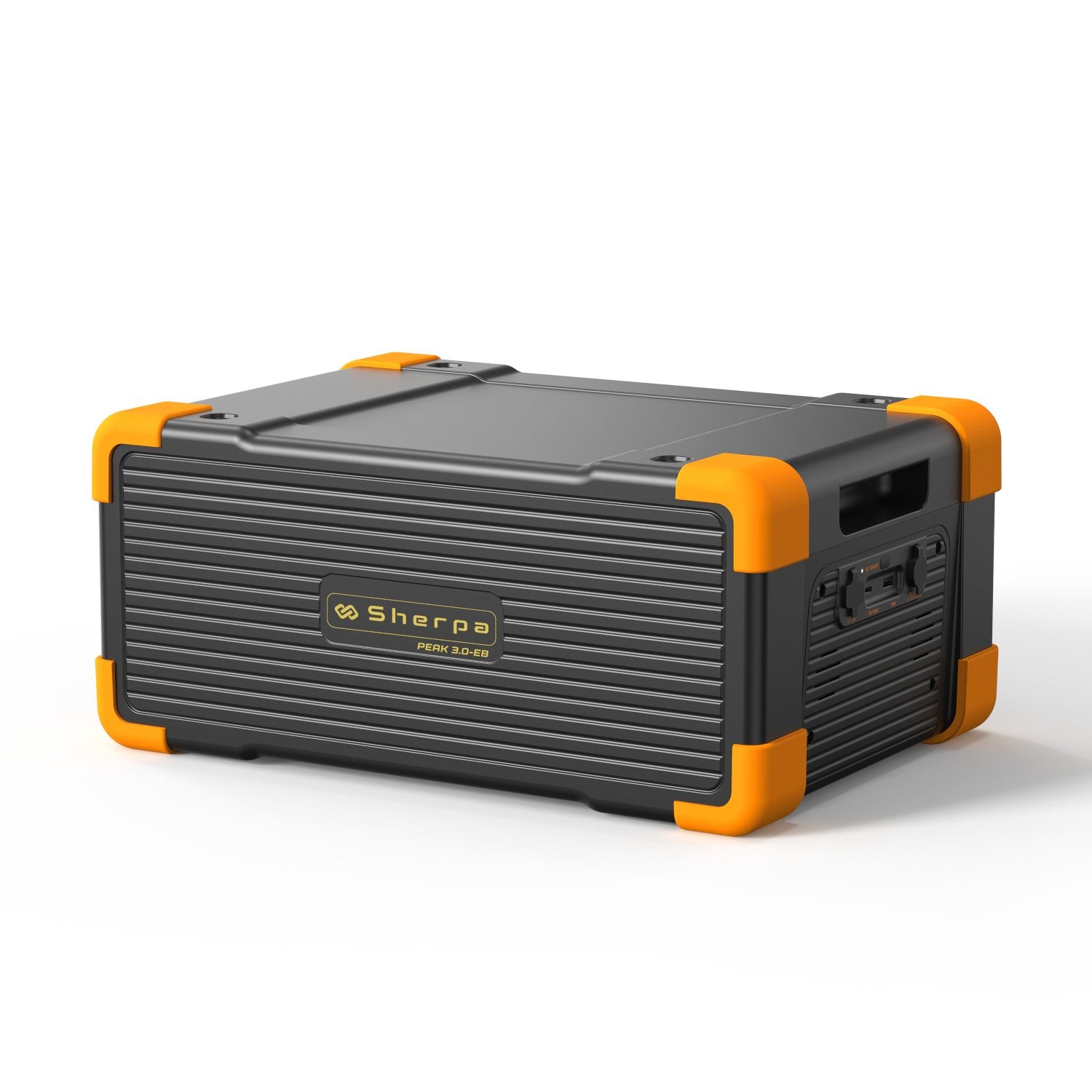

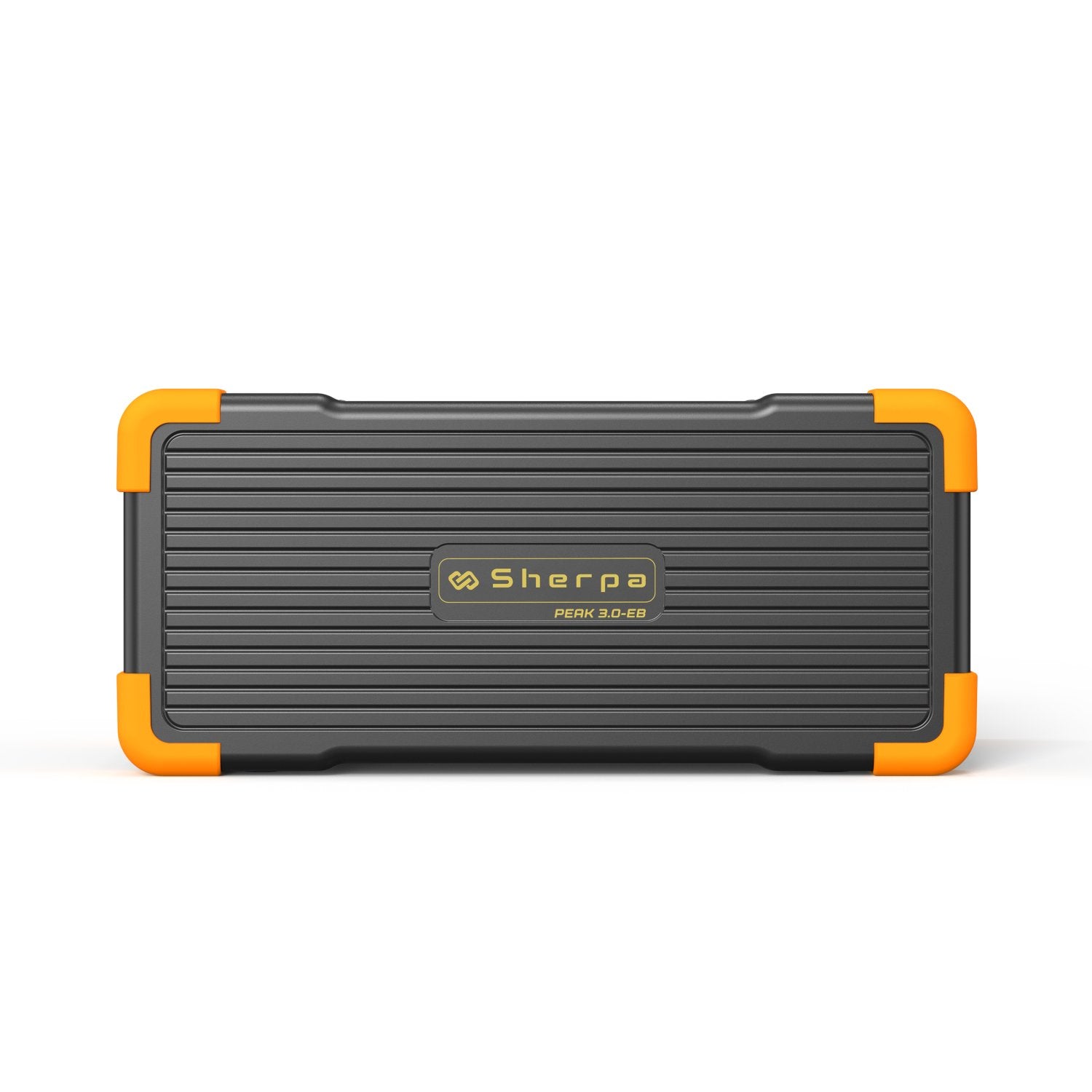

Front-right view of extra battery module, featuring orange corner protectors and capacity expansion ports

Front-left view of extra capacity battery module, featuring USB and XT60 output ports, solar input port and lifting handles

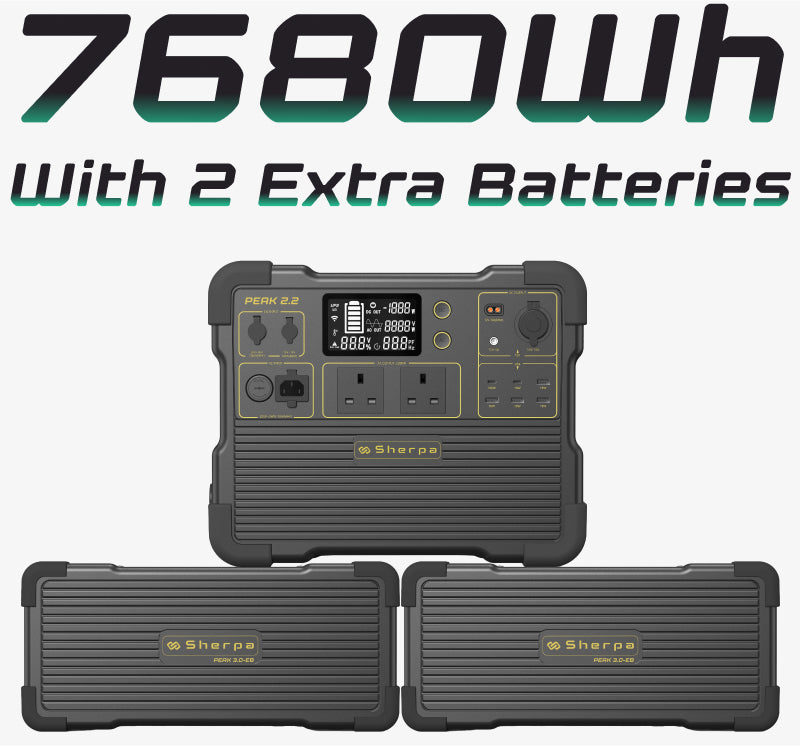

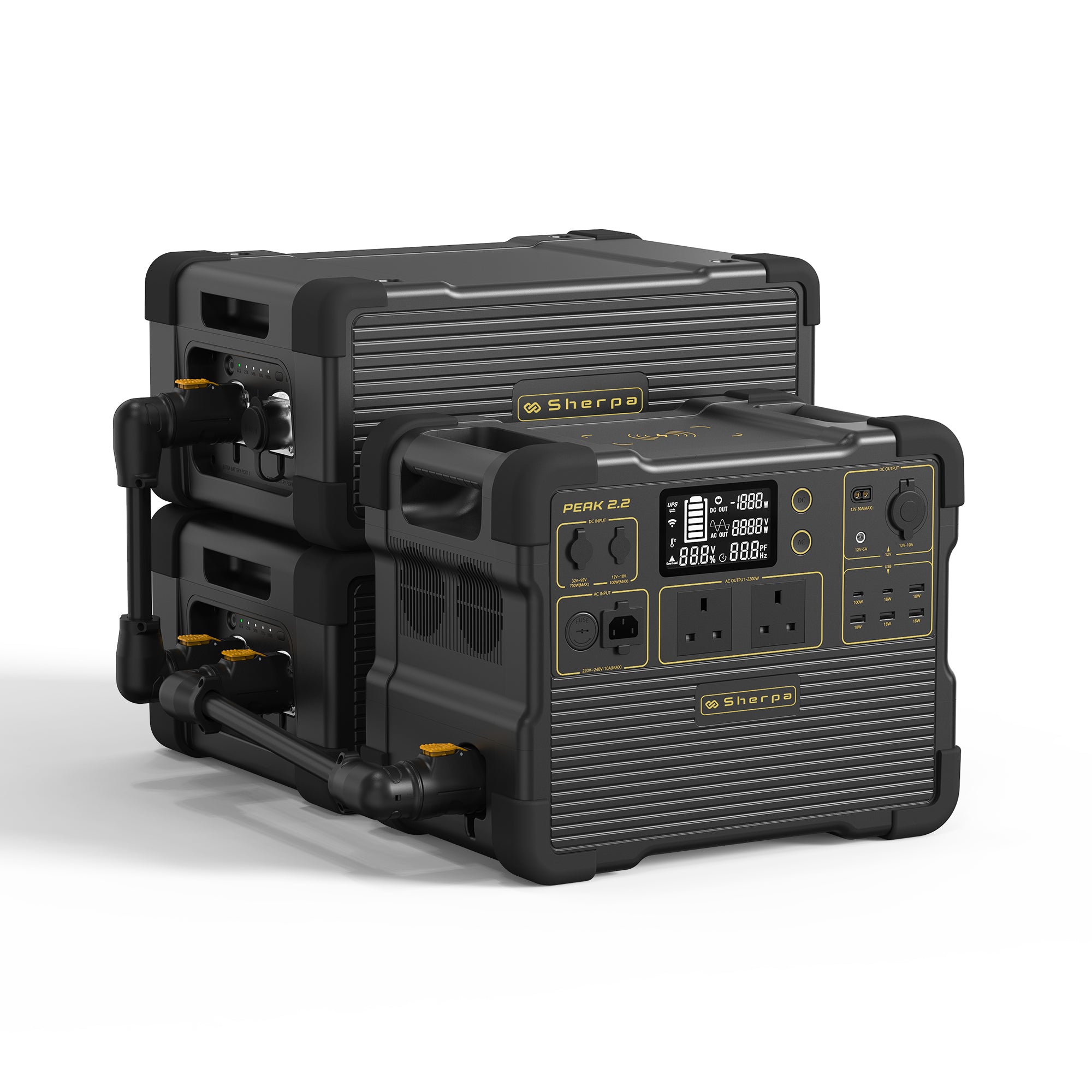

Front right shot of main host power unit in tandem with two extra battery modules behind it, connected by link cables

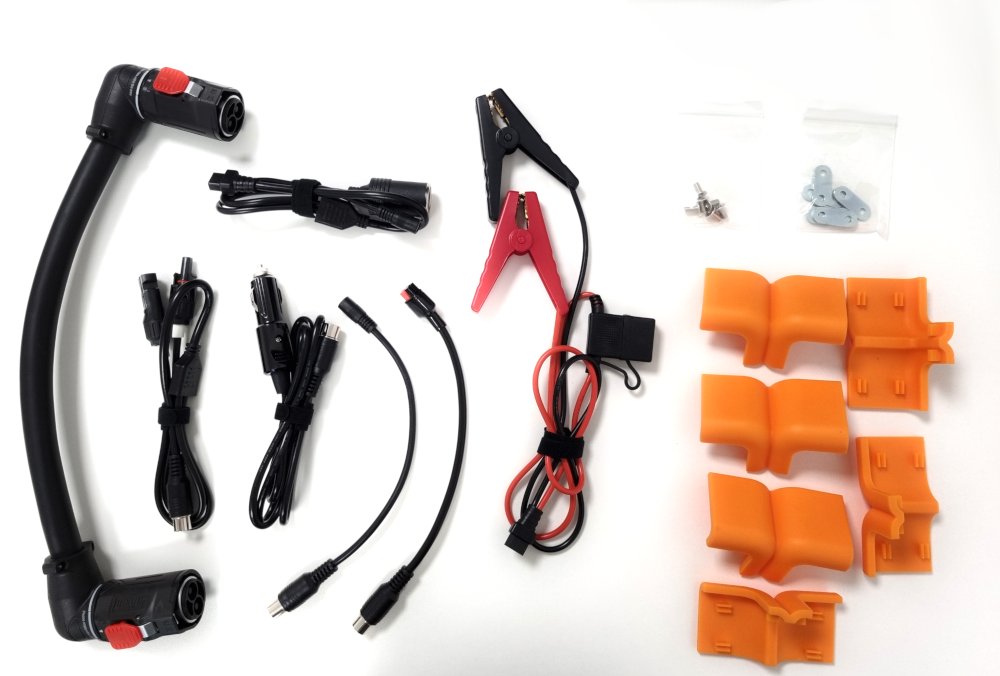

Overhead shot of accessory cables included: expansion link cable, car charger, crocodile clips, solar cables and fixings

Sherpa PEAK 3.0-Extra Battery

Name: Sherpa PEAK 3.0-Extra Battery
Brand: Sherpa Power
SKU: SP-PE3072PE-EB
Price: 1499.0 GBP
Availability: InStock

£1,499.00

Quantity:

5 Year Warranty Included!

Your purchase is completely protected by our 5 year warranty.

Order today to get yours by: ~ - ~

Use any of these payment methods:

Key Features

🔋 Battery
Capacity: 3072Wh LiFePO4, 3500 cycles to 80% capacity

⚡ Output (AC)
Not available

💡 Output (DC)
30A - 360W Max

🔌 Input (AC)
400W Available via separate AC-DC charger module

Input (🔆 Solar/ ⚡🔌 DC )
12-95V 400W Max

⏳ Charge Time
Mains (AC): 4h via host unit only
Solar / DC: 8h direct charge

🛡️ Warranty 5 Year Standard Warranty

⚖ Weight 26Kg

🔗 Expandable Capacity
Up to 7680Wh

Sherpa PEAK 3.0-Extra Battery

£1,499.00

Description

The PEAK 3.0-EB is a user-friendly, lightweight Smart Extra Battery, designed to add energy storage capacity to your system. Equipped to accept solar and hybrid renewable inputs, you can charge it directly and deliver clean and efficient power to your devices. Designed for scalable capacity, the PEAK 3.0-EB is built for commercial and leisure vehicles or temporary home backup use. The easy link up system allows you to add up to 2 extra batteries and one host unit for significant energy storage.

The PEAK 3.0-EB Portable Extra Battery incorporates an automotive grade, high-quality lithium
iron phosphate battery (LiFePO4), which can be cycled 3500 times before its original capacity is
reduced to 80%. Having a capacity of
3072Wh, expandable up to 7680Wh by linking two units to the PEAK 2.2, the system offers a
significant energy reserve for extended periods of uninterrupted power. Its in-built power
management means you can simultaneously charge by multiple renewable sources such as micro
wind and solar while using your connected devices. The PEAK 3.0-EB
Battery Management System (BMS) has multiple in-built protection features, to prevent overheating, overload, and short-circuit. These limit
excessive power draw, overcharge and deep discharge to preserve the longevity of the battery. With
short circuit protection and temperature control, you can confidently use the PEAK 3.0-EB,
knowing that your safety is taken care of

Featuring 3 power output ports, the PEAK 3.0-EB enables you to charge and power multiple DC
devices simultaneously.
DC OUTPUT: Multiple smart-charge ports that self-regulate power to your

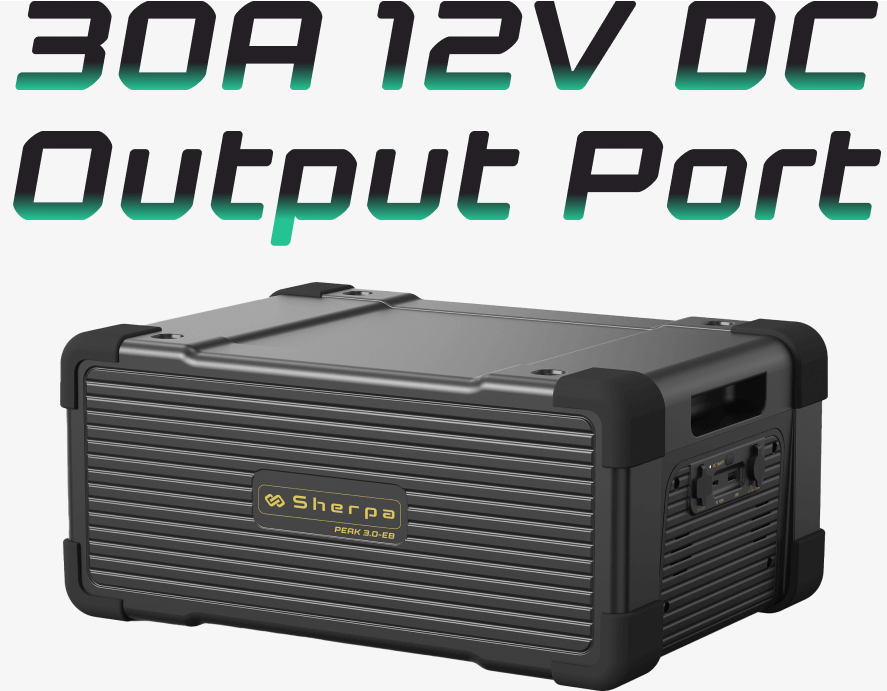

devices: USB-A Port x 1, USB-C Port x 1, and 30A XT60 Output x 1, allowing you to charge and power
smartphones, tablets, laptops, diesel heater, DC fridge, and other devices with DC power inputs.

The PEAK 3.0-EB offers advanced charging capabilities and flexible options to recharge the unit for added convenience:
AC Charging: approximately 4 hours from 0% to 100% charge from a connected PEAK 2.2 host unit, plugged into mains.
Solar and hybrid Renewable Charging: approximately 8h from 0% to 100% charge. The high-efficiency MPPT charge controller converts solar, wind (DC), or hydroelectric (DC) input, allowing you to go completely off-grid and enjoy the planet's free energy.
Onboard Charging: Trickle charge via the vehicle's 12V socket while travelling around.

Items included:
1 x PEAK 3.0-EB
1 x Output Adapter from XT60 to Aux and 5525 Port
1 x MC4 Solar Charging Cable (LSMC4-5GX16)
1 x MJ32 Cascade Cable
1 x 12V Alligator Clips
6 x Double Spare Corner Protector
1 x Adapter cable 5521 to GX16MF-5 Connector
1 x Adapter Cable Anderson to GX16MF-5 Connector
1 x Car Charge Cable to GX16MF-5 Connector
6 x Metal Fixing Plate
6 x Screw
8 x Spare Corner Protector
1 x User Manual

FAQs

1. Which Portable Power Stations are compatible with Sherpa PEAK 3.0-EB?
It is only able to be linked to the PEAK 2.2 model.

2. What devices can PEAK 3.0-EB power?
The DC output ports are limited to USB A and C or a 12V, 30A load from the XT60 Output. Small DC heaters and camping fridges can run on it comfortably.

3. How do I calculate the PEAK 3.0-EB run time?
General equation for run time = Total Capacity (2048Wh) x 0.85 (Depth of Discharge) / Load (Device rated power-Watts)

4. Can the PEAK 3.0-EB be charged while discharging?
Yes, via the DC input MPPT port, DC power can be charged and discharged simultaneously. Also when linked to its host unit, it can discharge AC or DC whilst being simultaneously charged by either source.

5. How should the PEAK 3.0-EB be stored?
Please turn off the unit and store it in a dry, ventilated place at normal room temperature. Do not place
this unit near water sources or a wet/moist environment. For long-term storage, it is recommended to
discharge the battery to 30% every three months and recharge it to 60% to sustain the battery life.

6. Is there any other safety advice?
• This product is IP-rated 20 and is therefore NOT waterproof.
• Pay attention to ventilation and heat dissipation when in use.
• Ensure adequate space for the vent fans to dissipate internal heat when in use.
• Do not use the product in environments where volatile gas may be present.
• When cleaning the product, wipe it with a dry, soft, clean cloth.

7. Can this product be transported by plane?
No, it is classed as dangerous goods and must be shipped by sea and
land only.

8. Is the actual useable capacity of the product consistent with the capacity
stated in the user manual?
All batteries reserve some capacity to prevent them from permanent damage by deep discharge. The actual usable capacity of the PEAK 3.0-EB is therefore lower than the capacity specified in the user manual by approximately 15% so you can use up to 85%.

9. What is the storage capacity of the PEAK 3.0-EB?
The PEAK 3.0-EB has a rated capacity of 3072Wh and a useable capacity of approximately 2,611Wh.

10. Does the PEAK 3.0-EB support an Extra Battery scalability?
Yes, up to 2 extra battery packs and a host unit can be linked to the PEAK 3.0-EB to achieve up to 7,680Wh capacity.

11. Does PEAK 3.0-EB have a built-in MPPT charge controller?
Yes, there is a built-in MPPT controller; use the GX16MF port for 12V-95V (15A Max) for PV (photovoltaic) input or micro wind DC charging.

12. What kind of solar panels should I use to charge PEAK 3.0-EB?
Total open circuit voltage: 12V-95V, 15A Max

Max input power: 400W

13. How does the PEAK 3.0-EB charge?
The PEAK 3.0-EB takes energy from its host unit such as the PEAK 2.2 once it is linked up. When both are activated, they balance out their charge levels.

Tech Spec

Battery Info
Capacity:	3072 Wh (Depth Of Discharge 85%)
Chemistry:	LiFePO₄ (Lithium Iron Phosphate)
Life Cycles:	3,500+ Cycles to 80% Original Capacity
Shelf-life:	Discharge the battery to 30% every three months and recharge it to 60%
Management System:	MPPT Controller, BMS
Protection:	Over-voltage, Low-voltage, Overheat, Overload
Discharging Temperature:	-20°C~45°C/-4°F~113°F
Charging
Temperature:	0°C~45°C/32°F~113°F
Storage Temperature:	20-30°C/68°F~86°F
DC Output
Outlets:	USB-A Port: 1 x (5V, 9V, 12V, Max 18W) USB-C Port: 1 x (5V, 9V, 12V, Max 100W) XT60 Output Port: 1 x (12V-30A)
AC Input
AC Input Power:	700W Max when charging via the PEAK 2.2 host
DC Input
DC Input Power:	400W Max (by solar or AC-DC adapter charger)
DC Inlet:	DC Anderson Input Port x 1 DC Charging (12V-150V, MPPT:18V-140V, 15A Max)
Recharge Times (0-100%)
AC Input:	4 hours when linked to PEAK 2.2 host
Solar / DC Input:	7-8 hours
Vehicle Charger (fast):	7-8 hours
Vehicle Charger (slow):	25 hours
General
IP Rating:	20
APP Compatible:	When linked to PEAK 2.2 host
Expandable Capacity:	Yes (up to 2 x Sherpa PEAK 3.0-EB link with the PEAK 2.2)
Warranty:	5-year Standard Warranty
Dimensions & Weight
Length (L):	441mm
Width (W):	312mm
Height (H):	200mm
Weight:	26Kg

Download Manual

Reviews

Battery Info
Capacity:	3072 Wh (Depth Of Discharge 85%)
Chemistry:	LiFePO₄ (Lithium Iron Phosphate)
Life Cycles:	3,500+ Cycles to 80% Original Capacity
Shelf-life:	Discharge the battery to 30% every three months and recharge it to 60%
Management System:	MPPT Controller, BMS
Protection:	Over-voltage, Low-voltage, Overheat, Overload
Discharging Temperature:	-20°C~45°C/-4°F~113°F
Charging
Temperature:	0°C~45°C/32°F~113°F
Storage Temperature:	20-30°C/68°F~86°F
DC Output
Outlets:	USB-A Port: 1 x (5V, 9V, 12V, Max 18W) USB-C Port: 1 x (5V, 9V, 12V, Max 100W) XT60 Output Port: 1 x (12V-30A)
AC Input
AC Input Power:	700W Max when charging via the PEAK 2.2 host
DC Input
DC Input Power:	400W Max (by solar or AC-DC adapter charger)
DC Inlet:	DC Anderson Input Port x 1 DC Charging (12V-150V, MPPT:18V-140V, 15A Max)
Recharge Times (0-100%)
AC Input:	4 hours when linked to PEAK 2.2 host
Solar / DC Input:	7-8 hours
Vehicle Charger (fast):	7-8 hours
Vehicle Charger (slow):	25 hours
General
IP Rating:	20
APP Compatible:	When linked to PEAK 2.2 host
Expandable Capacity:	Yes (up to 2 x Sherpa PEAK 3.0-EB link with the PEAK 2.2)
Warranty:	5-year Standard Warranty
Dimensions & Weight
Length (L):	441mm
Width (W):	312mm
Height (H):	200mm
Weight:	26Kg

Scalable Capacity

Endless Applications

Diesel Heater

195 hours

Laptop

45 charges

Camping Fridge

215 hours

Mobile Phone

155 charges

Energy Storage with Features

Its not just a battery; 3072Wh of storage with dedicated DC output ports for smart device, laptop charging and a 30A output for more power hungry appliances.

Simple and Smart

With a built-in battery management system and plug-and-play design for linking to your PEAK 2.2 portable power unit, there is no need to be an engineer to build your ideal setup.
